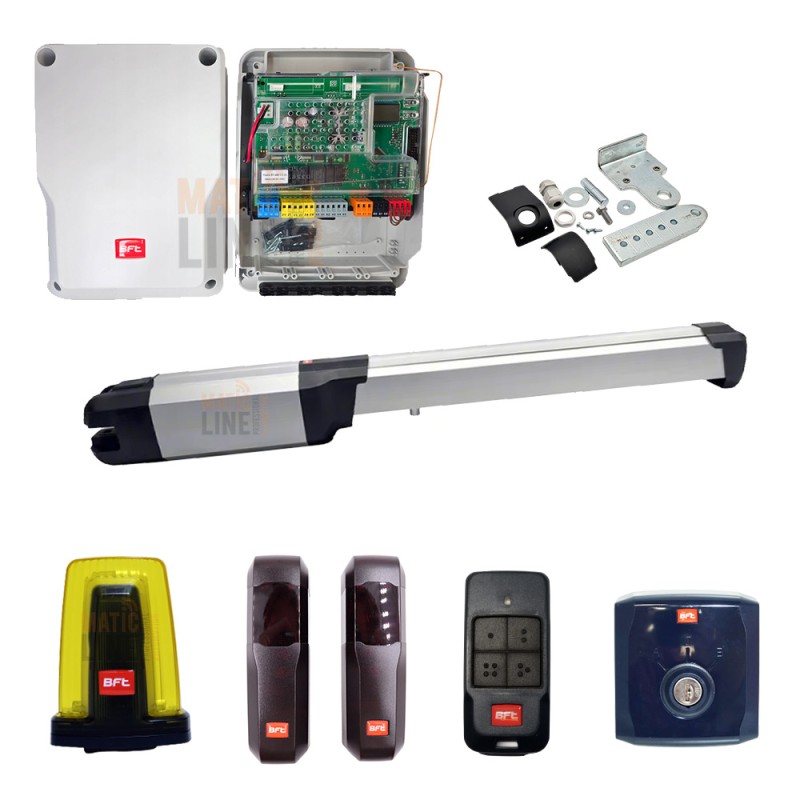

KIT BFT PHOBOS BT B40 AUTOMATION GATE SWING LEAF 24V 4MT 700KG ML050
No. 1 irreversible electromechanical operator 24 V PHOBOS BT B40 (max 4 mt and leaf) 2614566
No. 1 control panel with display for one or two electromechanical operators 24 V THALIA BT A80 2614324
No. 1 pair of 180° COMPACTA A20 photocells 2601411
No. 1 4-channel transmitter MITTO COOL C4 Range 50/100 m. 2614120
No. 1 white LED flashing light with antenna RADIUS BT A R1W 2607539
No. 1 anchoring brackets including adjustable brackets SFR. 2x release keys
No. 1 q.key selector 2601396
The box contains manuals and certifications
EAN:0615402462488
Secure site in SSL certification for the security of your data
Shipping in 24/48 hours after payment
Maximum times for returns 14 days, the goods must return as shipped by us,
Environmental conditions -20 ÷ 55 °C
Type of limit switch Magnetic
Motor voltage 24 V
Control unit THALIA BT A80. ZARA BT A80
Protection level IP44
Slowdown Yes
Power consumption 40 W
Type of operator Electromechanical swing gates
Interconnectivity No
Impact reaction D-Track
Push and pull force 2000 N
Weight of operator 5.2 kg
Lock Mechanical
Useful stem stroke 470 mm
Max. leaf width 4 m
Release Customized key
Maximum angle 130 °
Max. leaf length without electric lock 3 m
maximum opening cycles per hour 30
Operation time (90°, excluding slowdowns, with maximum leaf and maximum weight) approximately 16 s
Max. leaf weight 700 kg
Card power supply 230 V
