Reference: EAN: 8068087277465

BFT LIMIT SWITCH FOR DEIMOS COMPAT LEM ICARO ARES ERGO SLIDING GATE MOTORS AND 2600617

Review(s): 0

BFT LIMIT SWITCH FOR DEIMOS COMPAT LEM ICARO ARES ERGO SLIDING GATE MOTORS AND 2600617 COMPATIBLE MODELS: – BFT ICARO – BFT ERGO – BFT DEIMOS 700 – BFT DEIMOS 220v – BFT DEIMOS BT – BFT LEM – BFT COMPAT Includes connection wiring.

€9.20

Available

Reference: EAN: 8027908444660

BFT Q.BO TOUCH WIRELESS DIGITAL PUSHBUTTON PANEL 433MHZ ROLLING CODE 2600834

Review(s): 0

BFT Q.BO TOUCH WIRELESS DIGITAL PUSHBUTTON PANEL 433MHZ ROLLING CODE 2600834 TO BE PROGRAMMED ON THE BFT RADIO RECEIVER Dimensions 87.3x80x40 mm

€79.90

Last items in stock

Reference: EAN: 8027908458599

BFT COMPASS FOR SHAFT/PINION OUTPUT FOR DEIMOS DEIMOS BT COMPAT LEM 2609787

Review(s): 0

BFT COMPASS FOR SHAFT/PINION OUTPUT FOR DEIMOS DEIMOS BT COMPAT LEM 2609787

€6.20

Available

Reference: EAN.8055195023800

FAAC REPLACEMENT PLASTIC CONTAINER FOR BUILT-IN PHOTOSWITCH PHOTOCELLS COD.7203115

Review(s): 0

INCASSO COD.7203115 EAN.8055195023800

€7.90

In stock

All best sellers

Banner

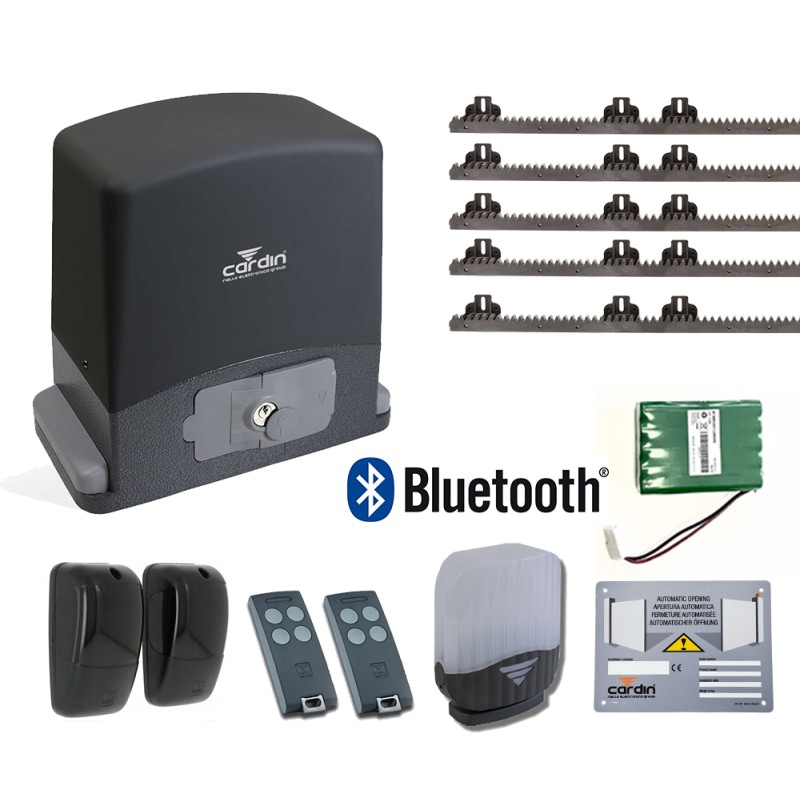

CARDIN KT-SLX624SE COMPLETE KIT WITH BUFFER BATTERY FOR SLIDING GATES 600KG 24V

Name: CARDIN KT-SLX624SE COMPLETE KIT WITH BUFFER BATTERY FOR SLIDING GATES 600KG 24V
Brand: MATIC LINE Professional Automotion
SKU: EAN.0615402408851
Price: 588 EUR
Availability: InStock

Reference EAN.0615402408851

Rating

CARDIN KT-SLX624SE COMPLETE KIT WITH BUFFER BATTERY FOR SLIDING GATES 600KG 24V BLUETOOTH CONNECTION

KIT COMPOSED OF:

SLX624 – Self-locking group with encoder 24V – max. weight 600kg

TXQ504C4 – 2 four function transmitters

CDR999 – Pair of surface photocells

ICON – RGB LED lamps

KIT buffer batteries included

Nr. 5 MT of nylon rack with steel reinforcement (8x 0.50m)

TARGA-INT – International warning plate

Security policies

Secure site in SSL certification for the security of your data

Shipping policies

Shipping in 24/48 hours after payment

Return policy

Maximum times for returns 14 days, the goods must return as shipped by us,

Description

SLX624 / SLX 624 – ELECTROMECCANIC GROUP WITH 24V MOTOR

SLX624 AUTOMATION MOTOR - AUTOBLOCCANT ENCODER 24V MAX. 600KG FOR SCORREVAL CANCELLO

The SLX624 sliding gate automation engine consists of a self-locking gear motor (with anta

13 meters/minute drive speed) controlled by magnetic encoder with integrated:

– electronic programmer;

– FM receiver 433 MHz;

GENERAL FEATURES AUTOMATION SLX624

SLX624CB Power supply Vac 230

Frequency Hz 50

Nominal electrical absorption A 0.9

Power absorbed W 180

Working cycle % 70

Drag speed m/min 13

Max pair Nm 57

Operating temperature range °C -20°...+55

Protection rating IP 44

DATA MOTOR SLX624

Power supply Vcc 24

Maximum output power W 130

Rated electrical absorption A 3.5

THE AMOUNT TO BE RECOVERED SHALL BE CALCULATED AS FOLLOWS:

MHz reception frequency 433,92 / 868,3

Canals 4

Functions n. 8

Codes stored No. 300 / 1000

MODULE BLUETOOTH

Product Details

Reference EAN.0615402408851

Reviews

No customer reviews for the moment.
