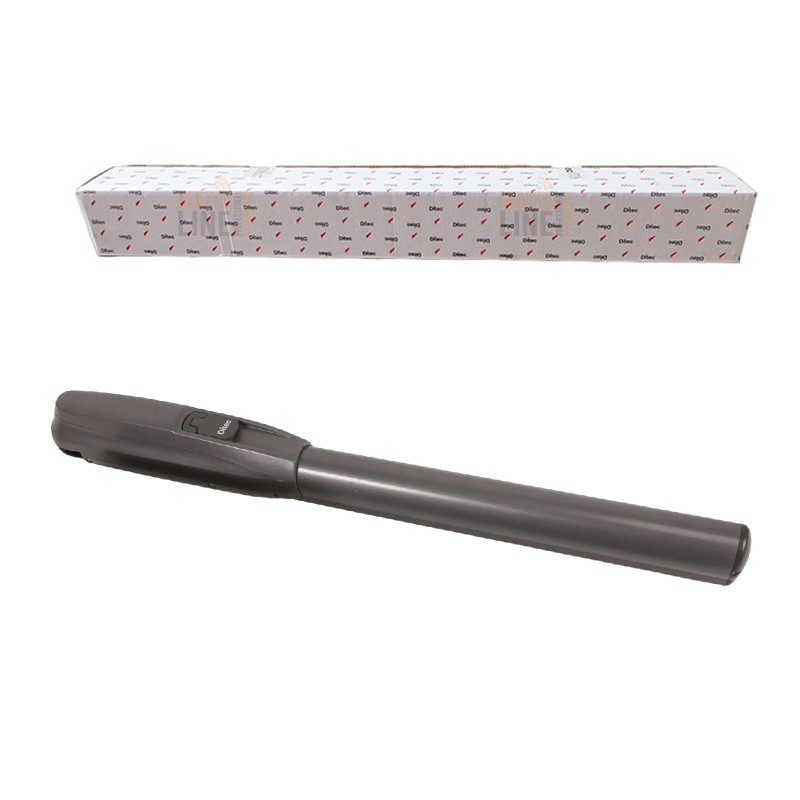

DITEC MOTOR PWR50AC 230V FOR SWING GATE 5MT INTENSIVE USE

DITEC MOTOR 230V PWR50AC

SWING GATE 5MT

REVERSIBLE AND IRREVERSIBLE INTENSE USE

Type Irreversible/Reversible

Stroke management (limit switch)

Mechanical stop (opening)

Power supply 230V ~ / 50Hz

Maximum absorption 1.1A

Absorbed power 250W

Maximum thrust 6000N

Maximum stroke 500mm

Opening time 32s / 90°

Intermittence 200 cycles/day [max] - 30 consecutive cycles at 20°C

Duration From 150,000 to 450,000

cycles depending on the conditions reported in table 3.1 (see product durability graphs)

Operating temperature -20°C / +55°C (-35°C + 55°C with NIO active)

Protection degree IP44

Dimensions (mm) 1044x100x124h

Weight (Kg) 10.5
