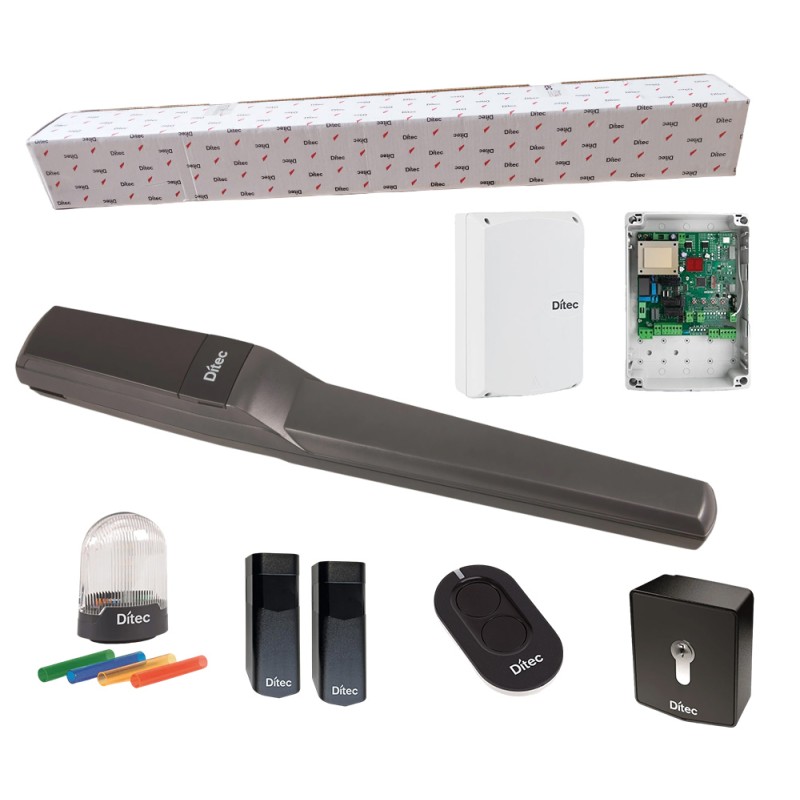

DITEC PWR 24V MOTOR KIT FOR SWING GATE 3.5MT PWR35H ML327

DITEC 24V KIT CODE PWR35H FOR SWING GATE

UP TO 3.5 MT RADIO 433 MHz IRREVERSIBLE FREQUENT USE

Description PWR35H

Irreversible electromechanical actuator for gate up to 3.5 m

Mechanical stop stroke management

Maximum capacity 600 kg x 1.75 m 250 kg x 3.5 m

Motor power supply 24 Vcc

Maximum power 5.5 A

Absorption 55 W nominal / 132 W max

Thrust 3000 N

Opening speed 14÷80 s / 90°

Maximum stroke 450 mm

Maximum actuator opening 110°

Intermittence 30 consecutive cycles at 20°C

Service class Frequent up to 300,000 cycles

Release for manual opening with key

Operating temperature -20°C / +55°C (-35°C / +55°C with NIO active)

Protection degree IP44

Weight (Kg) 9

Control panel LCU30H or LCU40H
