FAAC GENIUS KIT ROLLER INTERRATE FOR BATTENTE ROLLER 230 RC 500 KG 3.5 MT FOR ANTA 5170208

ROLLER 230 RC 500 KG 3.5 MT FOR ANTA

ATTENTION

LEVER RELEASE DEVICE FOR 110° OPENING FOR FAAC 770N AND GENIUS ROLLER 6100286 (ref: EAN.8055195020267)

IT IS NOT INCLUDED IN THE KIT ITEM TO BE TAKEN SEPARATELY

Description

Original FAAC GENIUS ROLLER KIT 230V automation kit

Irreversible electromechanical operators 230V for doors up to a maximum of 500 kg and 3.5 m long.

Manual emergency unlocking with innovative patented system with lever and custom eur opera key (not included in this kit).

Double-layer polyester coating that ensures high water resistance and allows installation even in saline environments.

Engine with mechanics totally in metal and bronze, in this motor you do not have plastic parts or nylon compounds.

Positioning system in steel self-supporting foundation boxes.

JA592 230V control unit for 1 or 2 operators up to a max of 800 W, with possibility of slowing down in both manoeuvres, dip-switch adjustment, output for 12V electro-seat management, command for total and partial opening, graft for 5 pin receiver.

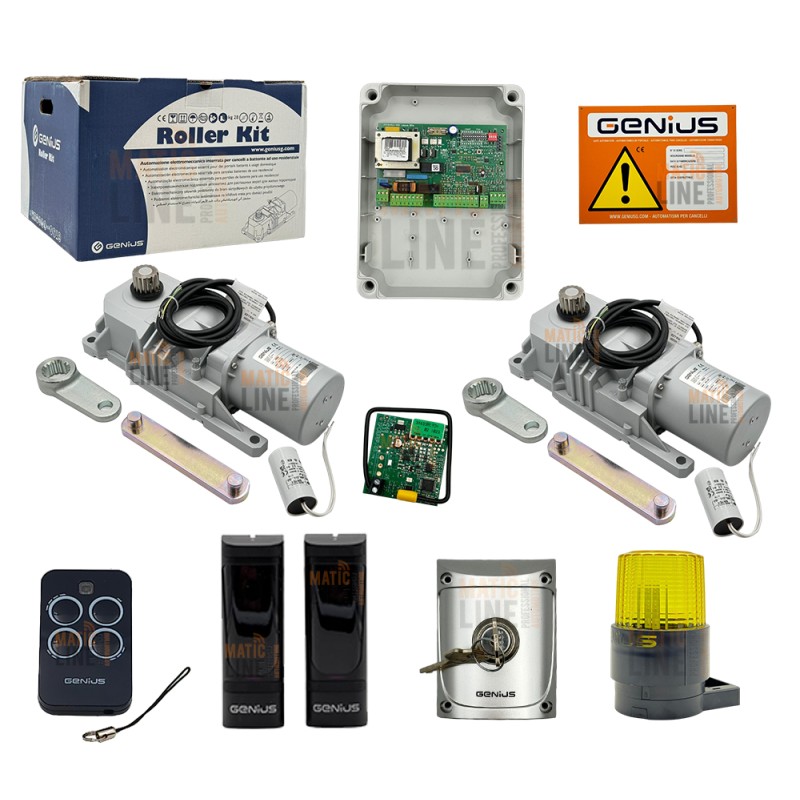

The kit includes:

2 Motors Roller 230V

1 electronic card JA592

1 Receipt with single channel 433 RC

1 Protection box for control panel

1 Transmitter 4 channels ECHO TX4 RC

1 GUARD 230V lamp

1 Pair of VEGA photocells

1 Ammonial card

Does not include crates and levers

Warranty on product 2 years.

All safety certifications and manuals are contained in the product packaging.
