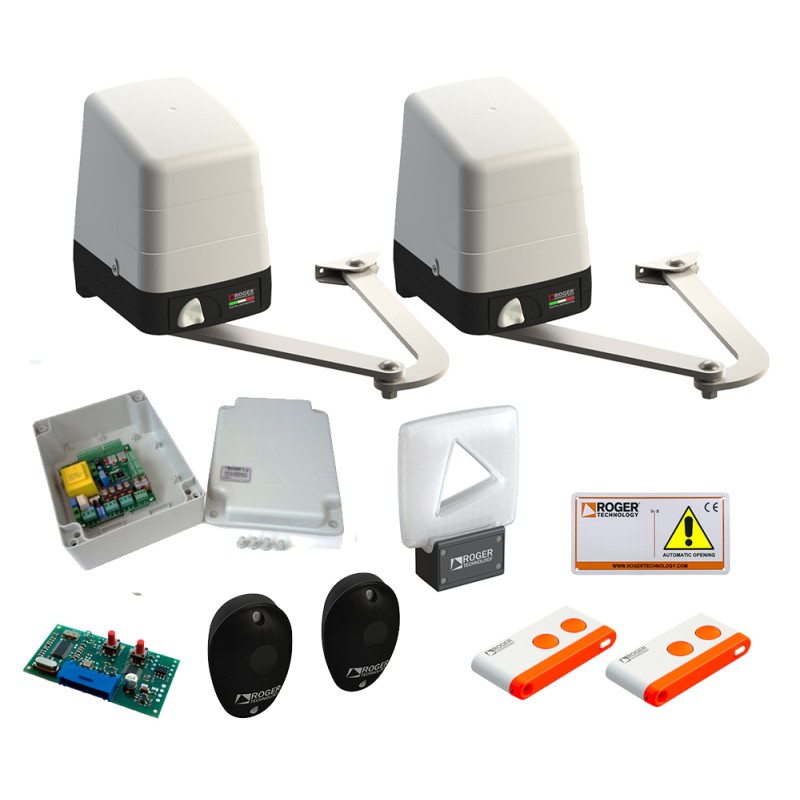

ROGER KIT H23/284 ARTICULATED SWING 230V WITH IRREVERSIBLE ENCODER UP TO 2.8 M PER LEAF
SET of 2 electromechanical gearmotors with articulated arm 230V AC, irreversible, ideal for swing gates with leaves up to 2.8 m with encoder, mechanical limit switch and short arms standard version. Complete with fixing plates and electronics kit.
KIT CONSISTING OF.
No. 2 - H23/282
Electromechanical gearmotor with articulated arm 230V AC, irreversible, ideal for swing gates with leaves up to 2.8 m with encoder, mechanical limit switch and short arms standard version. Complete with fixing plates.
No. 1 - KIT H70/22
Complete electronics kit with control unit H70/200AC for 2 motors, with remote controls T80/TX2.
No. 1 - H70/200AC/BOX
Control unit for managing 2 230V AC motors with slowdown functions, in plastic container.
No. 1 - H93/RX22A/I
2-channel plug-in fixed code radio receiver 433.92 MHz (500 storable codes) for H70, B70, EDGE, CTRL and F70 series control units.
No. 2 - T80/TX2
Bi-code radio control (fixed code or rolling code mode), 433.92 MHz, 2 channels, with copy function.
No. 1 - R90/F2ES
Pair of synchronized outdoor photocells.
No. 1 - FIFTHY/230
230V - 115V LED flashing light with integrated antenna.
No. 1 - R99/C/001
Signage "Automatic Opening".
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Line power supply: 230V AC - 50Hz
Standby consumption: ≤ 0.5W
Motor power supply: 230V AC
Rated power: 200W
Use frequency: 50%
Torque: 300 N m
Operating temperature: -20+55° C
Protection degree: IP44
Type of gear: Irreversible
Operation speed: 1.2 Rpm
Opening time: 12 s
Motor thermal protection: 150° C
Built-in capacitor: 10 µF
Limit switch: Microswitch in opening and closing
Encoder: Optical
Maximum product dimensions mm (L x W x H): 230 x 190 x 284
Packaged product weight (Kg): 29.7
