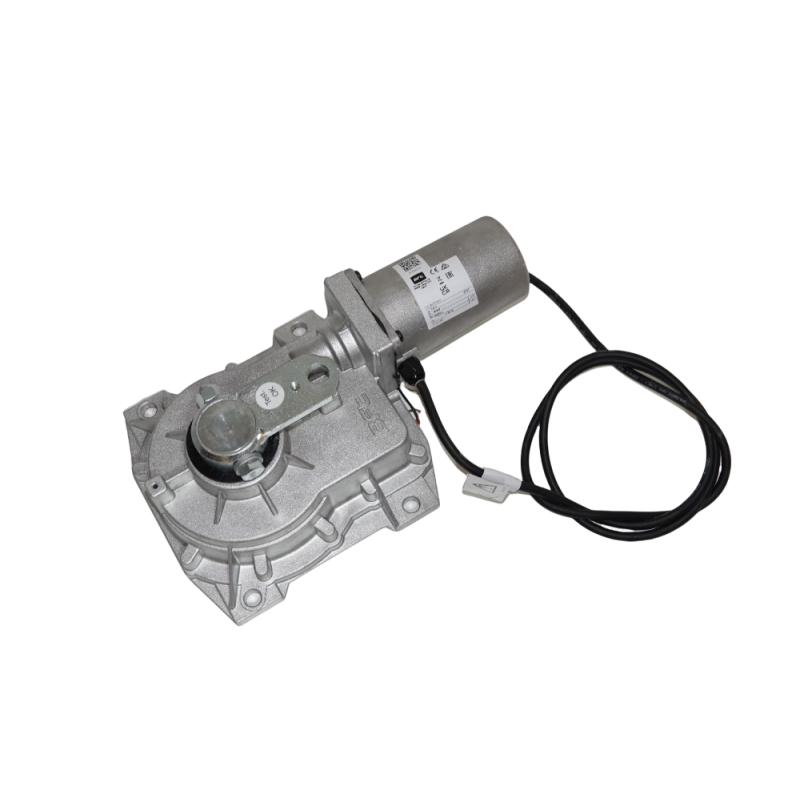

BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454
  • BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454

BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454

EAN: 8027908556165
Rating

BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454

single motor case not included

Motor voltage 24 V

Max. leaf width 3.5 m

Max. angle 120 °

Release Lever or lever with customized key

Impact reaction Electronic clutch (with control panel)

Protection degree IP67

Environmental conditions -20 ÷ 55 °C

Interconnectivity no

Compatible control unit THALIA, THALIA P

Max. leaf length without electric lock 2 m

Max. motor torque 250 Nm

Max. opening cycles per hour 50

Speed ​​2 Rpm

Opening time 90° 10" (with slowdown)

Standard limit switch Relative encoder

Optional limit switch Magnetic

Mechanical stops AP+CH

€319.00
VAT included
Quantity
Last items in stock

  Security policies

Secure site in SSL certification for the security of your data

  Shipping policies

Shipping in 24/48 hours after payment

  Return policy

Maximum times for returns 14 days, the goods must return as shipped by us,

Description

BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454

single motor case not included

Motor voltage 24 V

Max. leaf width 3.5 m

Max. angle 120 °

Release Lever or lever with customized key

Impact reaction Electronic clutch (with control panel)

Protection degree IP67

Environmental conditions -20 ÷ 55 °C

Interconnectivity no

Compatible control unit THALIA, THALIA P

Max. leaf length without electric lock 2 m

Max. motor torque 250 Nm

Max. opening cycles per hour 50

Speed ​​2 Rpm

Opening time 90° 10" (with slowdown)

Standard limit switch Relative encoder

Optional limit switch Magnetic

Mechanical stops AP+CH

Product Details
EAN: 8027908556165
0
Attachments
Download
Technical manual

Technical manual

Download (2.07MB)
Reviews

No customer reviews for the moment.

Write your review

BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454

BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454

BFT ELI BT A35 24V UNDERGROUND MOTOR AUTOMATION FOR SWING GATE 2601454

single motor case not included

Motor voltage 24 V

Max. leaf width 3.5 m

Max. angle 120 °

Release Lever or lever with customized key

Impact reaction Electronic clutch (with control panel)

Protection degree IP67

Environmental conditions -20 ÷ 55 °C

Interconnectivity no

Compatible control unit THALIA, THALIA P

Max. leaf length without electric lock 2 m

Max. motor torque 250 Nm

Max. opening cycles per hour 50

Speed ​​2 Rpm

Opening time 90° 10" (with slowdown)

Standard limit switch Relative encoder

Optional limit switch Magnetic

Mechanical stops AP+CH
