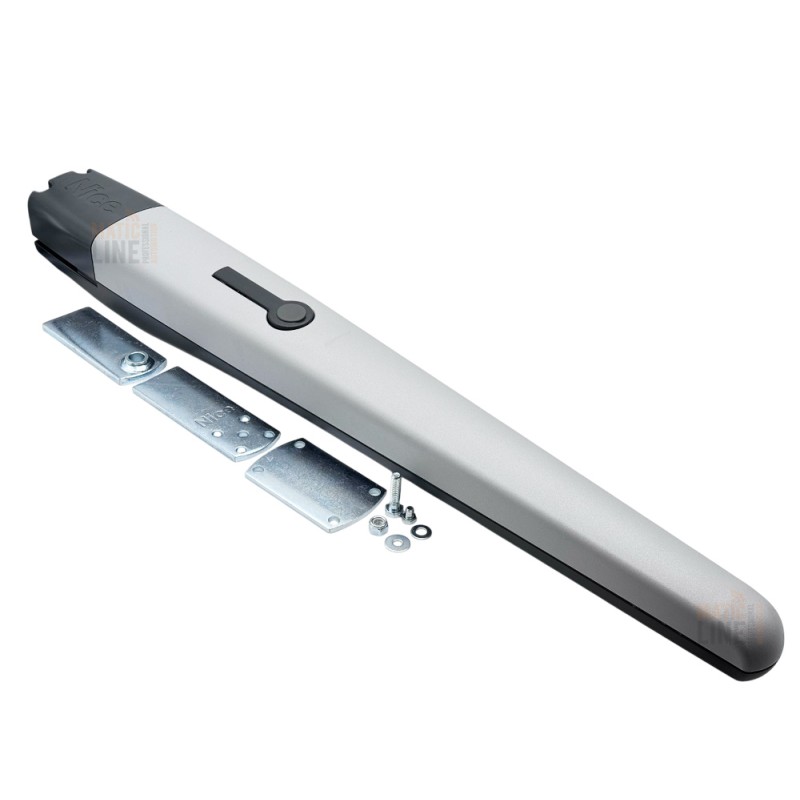

NICE TOONA 24V ELECTROMECHANICAL ACTUATOR MOTOR WITH ENCODER FOR SWING GATES MAX LENGTH 5 METERS TO5024

For swing gates with leaves up to 5 m

Ideal for residential and industrial applications.

Externally mounted electromechanical gearmotor. Also available in the 24 Vdc version, with magnetic encoder.

Reliability and durability over time: thanks to the body composed of two sturdy aluminum shells with polyester paint; more resistant to atmospheric agents.

Internal moving components entirely in steel, light alloys and technopolymers.

TO5024I ideal for intensive workloads, thanks to the torque of 2200 Nm, it can work continuously on large gates.

Silent: patented internal parts layout and bronze nut.

Large and convenient connection compartment: quick and easy access from above to the internal parts located in the upper compartment of the motor.

Easy installation and maintenance: with built-in capacitor.

Recommended control units: MC800, Moonclever MC824H for TO5024 and TO5024I.

24 Vdc version with magnetic encoder. Ideal for intensive use, compatible with the Moonclever MC824H control unit:

simple programming, with a single button;

self-learning of the opening and closing limit switches;

self-diagnosis of anomalies;

programming of the pause time;

pedestrian door;

slowdown in opening and closing;

dual technology obstacle detection;

operation in the absence of power with optional rechargeable batteries (PS324);

prepared for the connection of the latest generation sensitive edges.

TECHNICAL CHARACTERISTICS:

Power supply (Vac 50 Hz): –

Power supply (Vdc): 24

Absorption (A): 5

Power (W): 120

Speed ​​(m/s): 0.016

Force (N): 1800

Work cycle (cycles/hour): 95

Protection degree (IP): 44

Operating temp. (C Min/Max): -20 +50

Dimensions (mm): 965x115x105 h

Weight (kg): 7
