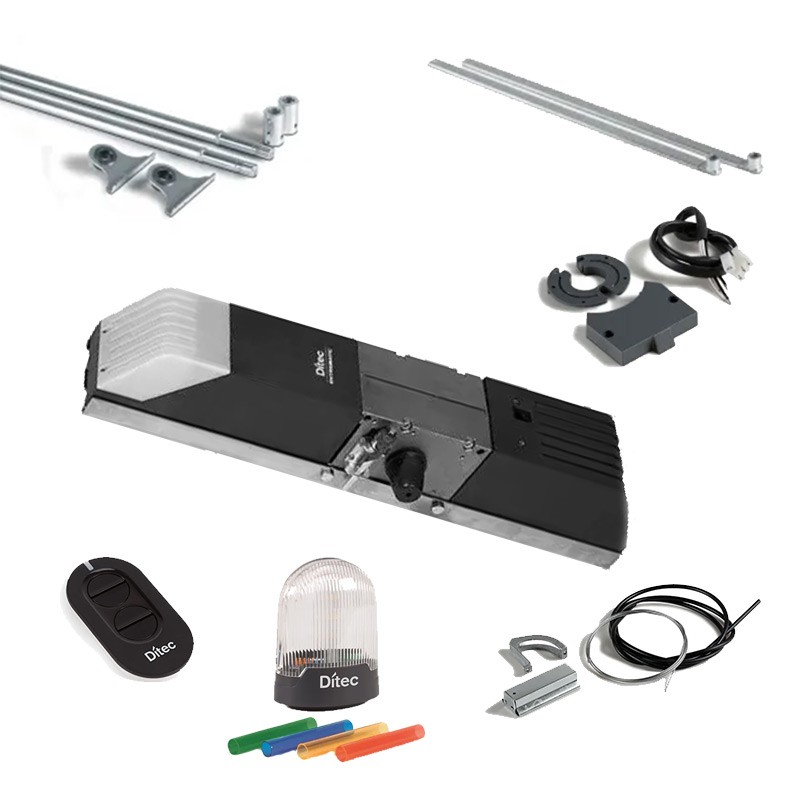

DITEC COMPLETE KIT FOR 24V GARAGE DOOR SHUTTER DOITBXL ML301

Ditec Box moves both counterweighted garage doors with standard curtain and fully automatic garage doors recessed or articulated. Easy to install, it automates doors up to 7 m2 with a single operator and up to 12 m2 with 2 motors in parallel.

Safe: 24 Vdc encoder technology for constant electronic control of impact forces and immediate obstacle detection, ensuring the operator stops or reverses motion (if configured), as well as adjusting the opening and closing speeds.

Ready to use: it is equipped with a courtesy light, a pre-wired fixing base and key release, an integrated control panel with built-in radio receiver and opening limit switches already mounted. On-board opening button.

Rational: designed to allow easy and practical assembly, avoiding any structural modification to the door. The integrated panel and the mounted limit switches make it a product ready for installation.

Easy: simple and quick to program panel via dip switches and trimmers to adjust opening and closing speeds, automatic closing time, and pushing on obstacles.

Versatile: manual release via internal lever or with key from the outside. A return system using a metal cord to be connected to the handle on the door is also available (optional).
