DITEC KIT MOTOR PWR 24V FOR CANCELLO 2 ANTE BATTENTI 7MT PWR35HL-ML311
DITPWR35HL CODE
TO CANCEL TO 2 IN FRONT OF KNOCKERS
FINO A 7 Mt (3,5 + 3.5 mt) RADIO 433 MHz
IREVERSIBLE INTENSATION

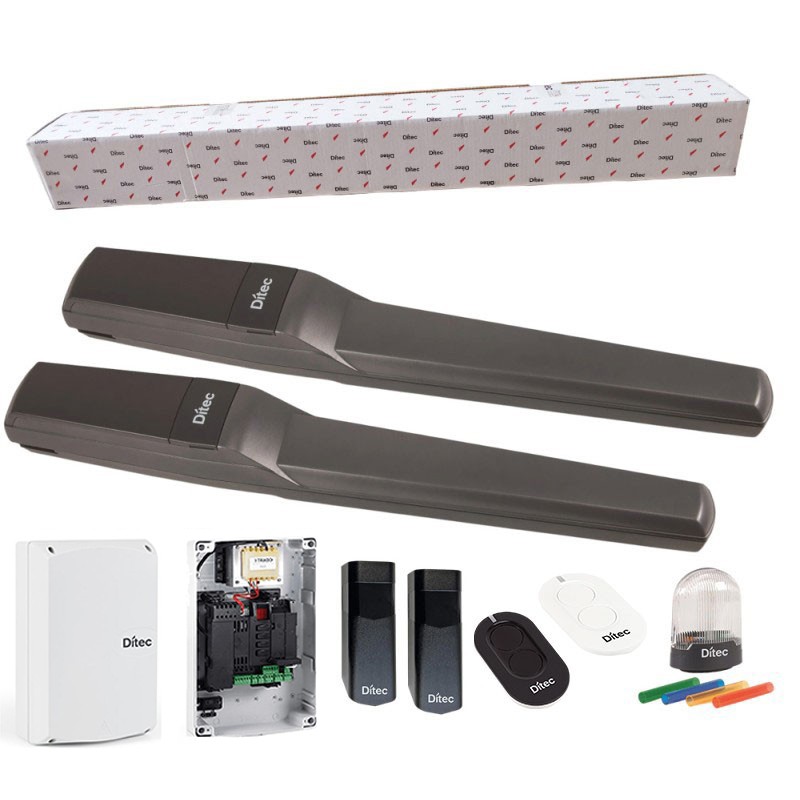

Composition:
2 PWR35H 24v actuators
1 LCU40H control panel with built-in radio receiver
1 pair of LIN2 photocells
2 remote controls rolling code 2Ch (1 x ZEN2 + 1 x ZEN2W)
1 flashing FL24
1 panel ammonia E109B
EAN.0615402734202
Secure site in SSL certification for the security of your data
Shipping in 24/48 hours after payment
Maximum times for returns 14 days, the goods must return as shipped by us,
Technical characteristics
Description PWR35H 24v
Irreversible electromechanical actuator for gates up to 3.5 m
Mechanical stop stroke management
Maximum load 600 kg x 1.75 m 250 kg x 3.5 m
Motor power supply 24 Vdc
Maximum power 5.5 A
Absorption 65 W nominal / 132 W max
Thrust 3000 N
Opening speed 14÷80 s / 90°
Maximum stroke 450 mm
Maximum actuator opening 110°
Intermittent 50 consecutive cycles at 20°C
Service class Intense up to 300,000 cycles
Release for manual opening with key
Operating temperature -20°C / +55°C (-35°C / +55°C with NIO active)
Protection degree IP44
Actuator weight (Kg) 9
