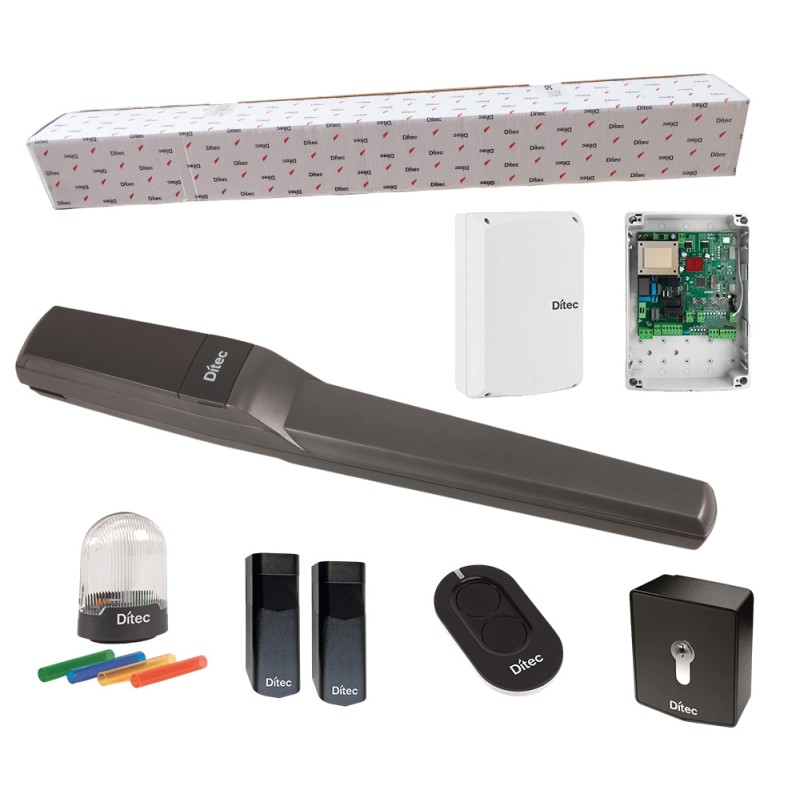

DITEC PWR 24V MOTOR KIT FOR SWING GATE 2.5MT PWR35H ML325

DITEC 24V KIT CODE PWR25H FOR SWING GATE

UP TO 2.5 MT RADIO 433 MHz IRREVERSIBLE FREQUENT USE

Technical characteristics:

Maximum capacity 400 kg x 1.5 m 200 kg x 2.5 m

Motor power supply 24 Vdc

Maximum power 5 A

Absorption 55 W nom. / 120 W max

Thrust 2000 N

Opening speed 10÷60 s / 90°

Maximum stroke 350 mm

Maximum actuator opening 110°

Intermittence 30 consecutive cycles at 20°C

Frequent up to 150,000 cycles

Release for manual opening with key

Operating temperature -20°C / +55°C (-35°C / +55°C with NIO active)

Protection degree IP44

Weight (Kg) 7.8

Control panel LCU30H or LCU40H
