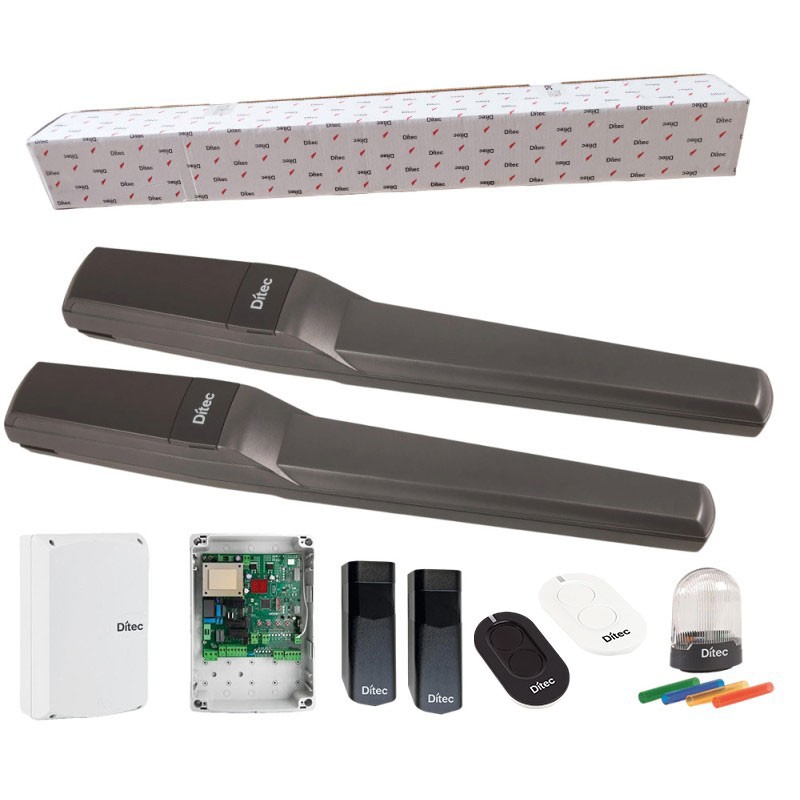

DITEC PWR 24V MOTOR KIT FOR 2-LEAF SWING GATE 5MT PWR25HL ML310

FOR 2-LEAF SWING GATE

UP TO 5m (2.5 + 2.5m) RADIO 433 MHz

IRREVERSIBLE FREQUENT USE

Technical features:

Description PWR25H 24V

Irreversible electromechanical actuator for gate up to 2.5m

Mechanical stop stroke management

Maximum capacity 400 kg x 1.5 m 200 kg x 2.5 m

Motor power supply 24 Vdc

Maximum power 5 A

Absorption 55 W nominal / 120 W max

Thrust 2000 N

Opening speed 10÷60 s / 90°

Maximum stroke 350 mm

Maximum actuator opening 110°

Intermittent 30 consecutive cycles at 20°C

Service class Frequent up to 150,000 cycles

Release for manual opening with key

Operating temperature -20°C / +55°C (-35°C / +55°C with NIO active)

Protection degree IP44

Actuator weight (Kg) 7.8
