DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT ML319
  • DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT ML319

DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT ML319

EAN.0615402438339
Rating

DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT ML319

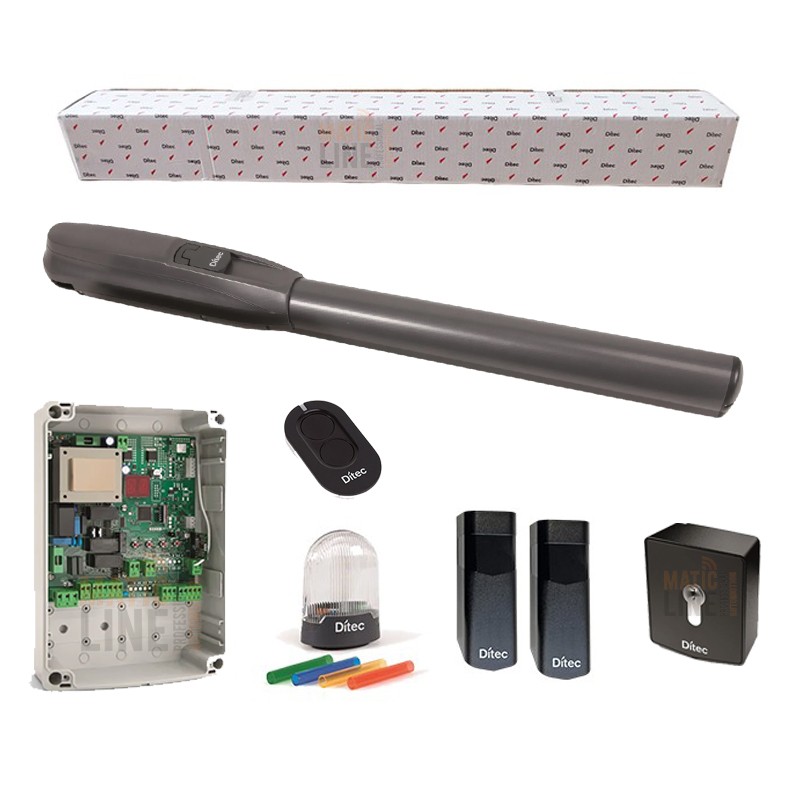

KIT COMPRISING

N.1 PWR 230V PWR50AC MOTOR

N.1 LCA70 CONTROL PANEL WITH BUILT-IN RADIO RECEIVER

N.1 PAIR OF LIN2 PHOTOCELLS

N.1 ROLLING CODE 2CH REMOTE CONTROLS (1 X ZEN2 )

N.1 FLM 230V FLASHING LIGHT

N.1 AXK5M STEEL KEY SWITCH

EAN.0615402638876

€598.90
VAT included
Quantity
Last items in stock

  Security policies

Secure site in SSL certification for the security of your data

  Shipping policies

Shipping in 24/48 hours after payment

  Return policy

Maximum times for returns 14 days, the goods must return as shipped by us,

Description

DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT REVERSIBLE IRREVERSIBLE INTENSIVE USE ML318

DITEC 230V PWR50AC MOTOR

SWING GATE 5MT

Type Irreversible/Reversible

Stroke management (limit switch)

Mechanical stop (opening)

Power supply 230V ~ / 50Hz

Maximum absorption 1.1A

Absorbed power 250W

Maximum thrust 6000N

Maximum stroke 500mm

Opening time 32s / 90°

Intermittence 200 cycles/day [max] - 30 consecutive cycles at 20°C

Duration From 150,000 to 450,000

cycles depending on the conditions reported in table 3.1 (see product durability graphs)

Operating temperature -20°C / +55°C (-35°C + 55°C with NIO active)

Protection degree IP44

Dimensions (mm) 1044x100x124h

Weight (Kg) 15

Control panel LCA70

Product Details
EAN.0615402438339
Reviews

No customer reviews for the moment.

Write your review

DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT ML319

DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT ML319

DITEC PWR50AC 230V MOTOR KIT FOR SWING GATE 5MT ML319

KIT COMPRISING

N.1 PWR 230V PWR50AC MOTOR

N.1 LCA70 CONTROL PANEL WITH BUILT-IN RADIO RECEIVER

N.1 PAIR OF LIN2 PHOTOCELLS

N.1 ROLLING CODE 2CH REMOTE CONTROLS (1 X ZEN2 )

N.1 FLM 230V FLASHING LIGHT

N.1 AXK5M STEEL KEY SWITCH

EAN.0615402638876
