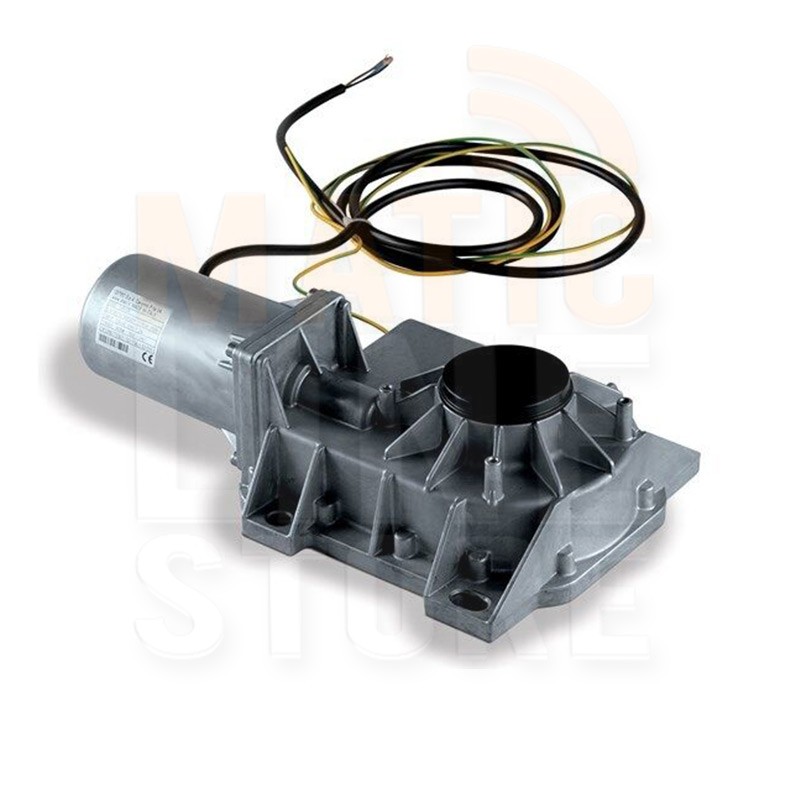

DITEC CUBIC6 230V UNDERGROUND IRREVERSIBLE ELECTROMECHANICAL OPERATOR FOR LEAF GATES UP TO 3.5 MT

CUBIC6 LEVERS NOT INCLUDED

Watertight gearmotors.

Foundation box in stainless steel or cataphoresis-treated steel.

Version with 230 v motor

Fast models for 90° opening in 6 seconds, possibility of 180° opening and mechanical stop inside the box.

Key or lever release that can be operated from both sides.

Electromechanical actuator: irreversible, for gates up to 3.5 m

Stroke management: magnetic limit switch (optional)

Maximum capacity: 600 kg x 2 m, 250 kg x 3.5 m

Service class: 3 - frequent

Intermittence: S2 = 15 min, S3 = 25%

Power supply: 230 V~ / 50 Hz

Absorption: 1.5 A

Torque: 340 Nm

Opening time: 18 s/90°

Maximum actuator opening: 110° or 180°

Release for manual opening: key

Operating temperature: -20°C / +55°C, (-35°C / +55°C with NIO activated)
