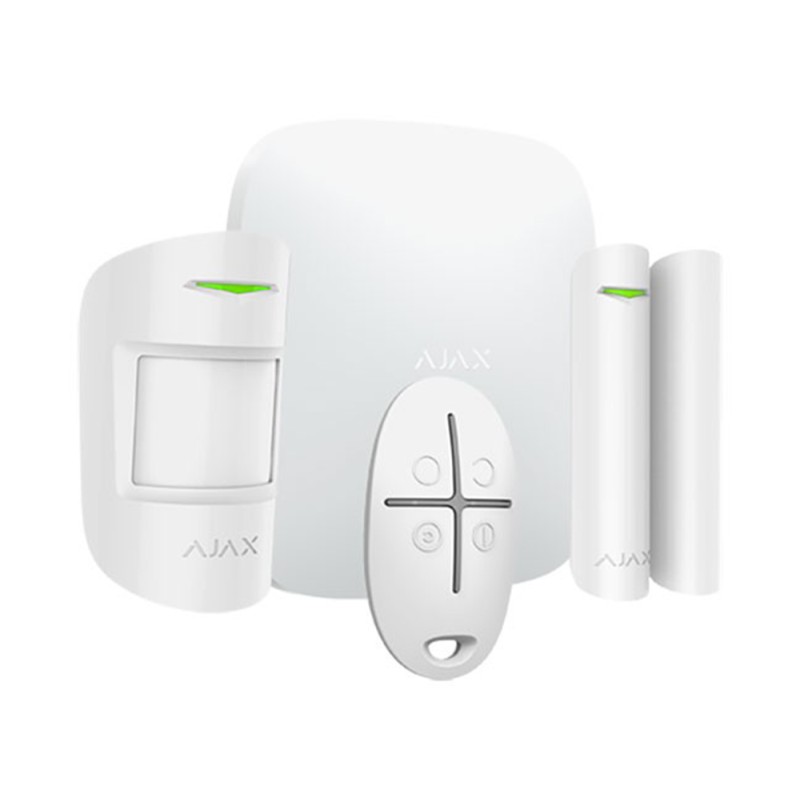

AJAX ALARM KIT PROFESSIONAL WIRELESS STARTER KIT AJ-HUBKITW

Model

AJ-HUBKIT-W

Complete set

Wireless Smart Control Panel (Hub)
Wireless Motion Detector (Pir)
Wireless door opening detector
Wireless Keyring

Maximum number of connected devices

100

Maximum number of users

50

Mobile applications

iOS 9.1 and later
Android 4.1 and later

Alarm signal delivery time

0.15 sec max

Battery life

Up to 7 years

Jeweller radio technology

Communication range with central unit - up to 1,700 m in an open space
Bidirectional communication between devices
Operating frequency: 868.0-868.6 MHz
Self-adjustable RF output power - up to 20 mW
Blocks AES algorithm-based encryption
Poultry period of the device: 12-300 s

Communication channels

Ethernet, GSM (850/900/1800/1900 MHz)

SIM card support

Micro SIM 2G

Power supply

Network power supply: 110-240 V
Battery backup: Li-Ion 2 A)h
Up to 15 hours of offline operation with Ethernet disabled

Integrated video surveillance

IP cameras with RTSP - Cloud technology Dahua (beta)

Dimensions

Hub: 165x165x45mm
Pir: 110x65x60mm
Door detector: 90x20x20mm + large magnet: 90x90x20mm, small magnet: 65x12x8mm)
Keychain: 67x37x14mm

Weight

Hub: 235 gr
Pir: 85 gr
Door detector: 30 gr + large magnet: 35 gr, small magnet: 5gr
Keychain: 15 gr

Storage temperature

-30~ +60°C

Temperature of use

0~ +45°C
