Banner
|
ACTIVITIES OF THE RILEVATOR |
1 cm (small magnet) 2 cm (large magnet) |
| ACTIVITIES OF THE SENSOR OF INCLINATION | From 5° up (customized) |
| SENSIBILITY AT URTI | 3 levels |
| INDUSTRIAL OPTION | Yes |
| IT IS ALSO ANTI-SABOTAGE | Yes |
| BANDA DI FREQUENZA | 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, based on the place of purchase |
| COMPATIBILITY | It only works with Ajax hubs and signal repeaters |
| MASSIMA POTENCE OF USES RF | Up to 20mW |
| MODULATION OF THE SEGNAL RADIO | GFSK |
| RAGGING THE SEGNAL RADIO | Up to 1,200 m (in open field) |
| PRESENT FOR CULTURAL RILEVATORS | Yes, NC |
| ALIMENTATION | 1 battery CR123A, 3 V |
| BATTERIA DURATION | Up to 5 years |
| INSTALLATION | Interior |
| PROTECTION CLASS | IP50 |
| FUNCTIONING TEMPERATURE | From -10°С to +40°С |
| OUTSIDE | Up to 75% |
| DIMENSIONS | Ø 20 × 90 mm |
| PEOPLE | 29 g |
| UT | 10 years |
| CERTIFICATION | Safety grade 2, environmental class II in accordance with the requirements of standards EN 50131-1, EN 50131-2-6, CLC/TS-50131-2-8, EN 50131-5-3 |
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Operation

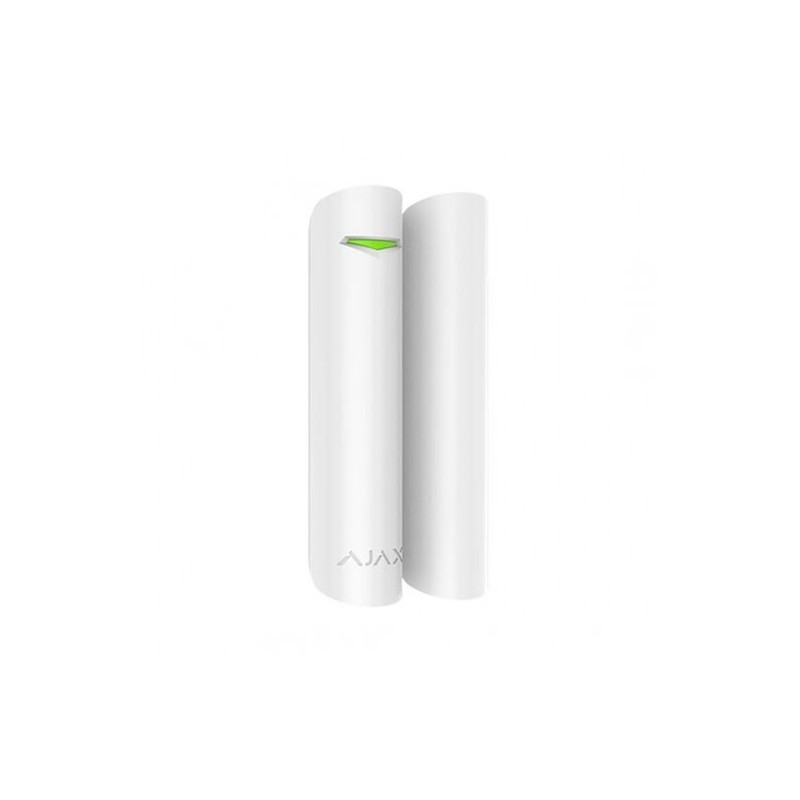

The device detects the opening of doors or windows thanks to relay reed hi-end of British production, on which the magnetic field acts. It works in transmitter mode, sending a signal from the wired sensor to the hub.
Description
The device consists of two modules, detector and magnet. The set has two magnets: a large magnet to be installed at a maximum distance of 2 cm, a small magnet to be installed at a maximum distance of 1 cm.
Installation and configuration
Ready to use: the battery is already installed, it is not necessary to disassemble the detector. Connect to the hub by mobile application with one click. Mount on the SmartBracket support in just a few minutes.
