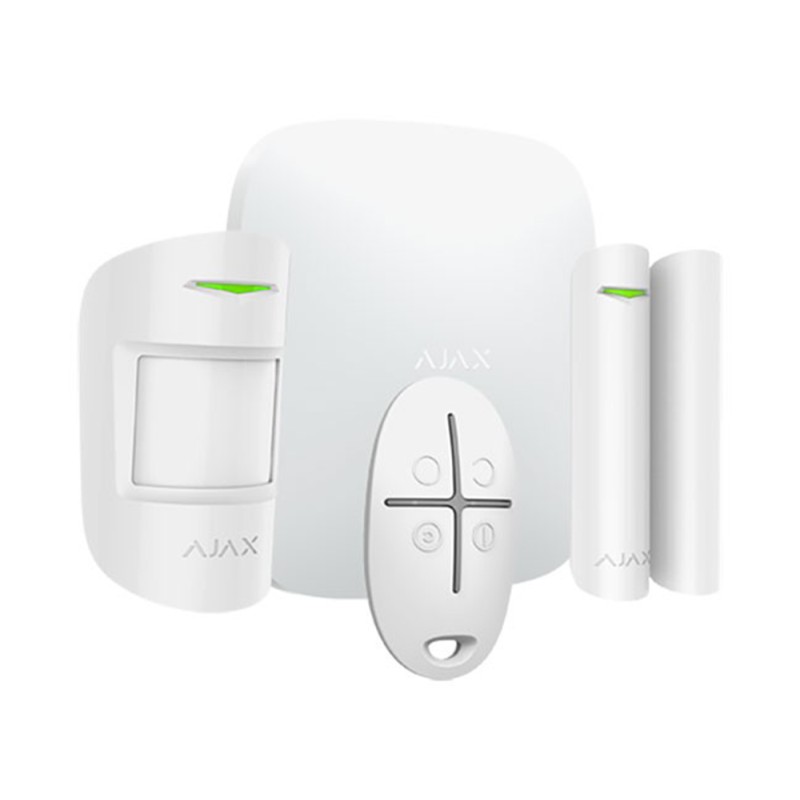

AJAX HUB2 PLUS PROFESSIONAL WIRELESS ANTI-THEFT KIT WITH WI-FI+LAN CONTROL UNIT - KHUB2PLUSW

KIT specifications: AJAX HUB2 Plus 100 Zone White AJ-HUB2PLUS-W Wireless Alarm Control Unit:

4G

2 SIM

WI-FI+LAN Ethernet

4 communication channels including high-speed LTE network

64 scenarios

2000 meter signal distance

up to 200 users

up to 200 connected devices

up to 100 connected cameras or DVRs

This setup allows you to connect the device to two separate Internet providers via Ethernet and Wi-Fi, while having two cellular services ready for backup. Switching between channels is easy and takes just a few seconds.

Hub 2 Plus can manage up to 200 MotionCam detectors and provide photographic alarm confirmations to users and alarm monitoring companies in just 9 seconds, even when using SIM cards for communication. Thanks to LTE support.

Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location. It can automatically arm and disarm the entire security system or groups as set. It can also instantly activate an intrusion smoke machine, disconnect the power supply and turn on the emergency lights in the event of a fire, or turn off the water in the event of a leak. Using automation devices, Hub 2 Plus can control lights, electric locks and roller shutters. Scenarios can be triggered in response to security mode changes, alarm triggering or button commands.

Hub 2 Plus runs on OS Malevich, a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses and protected from cyber attacks.

Hub 2 Plus is ready to use. It comes with pre-installed communicators, a power supply and a backup battery. To start setting up the system, you need to plug the device into a power outlet, connect it to the Internet, insert SIM cards and scan the QR code, using the app. Thanks to SmartBracket, you don't even need to disassemble the device to mount it.

All security system settings are always available in the app. Even when you are away from the hub, you can connect security devices or CCTV cameras, add users, test the radio signal strength, create groups and security scenarios or connect a hub to an alarm monitoring company.

Features:

Classification Security system control panel with built-in four channels for external communication and support for camera detectors

Installation Indoor

Connected devices 200

Video surveillance support 100 DVR cameras

Users 200

Rooms 50

Security groups 25

ReX connected 5

Scenarios 64

App iOS 9.1 and later Android 4.4 and later

Communication channels 2 SIM cards - 2G (GSM900/DCS1800 (B3/B8)) - 3G (WCDMA 850/900/2100 (B1/B5/B8)) - LTE (FDD B1/B3/B5/B7/B8/B20) - Wi-Fi (802.11 b/g/n) - Ethernet

Alarm signals Delivery time: 0.15 sec - Notification types: SMS, call, push notification

Switch between 2G, 3G, LTE instantly

Switch between SIM cards 4 minutes

CRA connectivity CRA connectivity: Contact ID, SIA - Integrated photo verification in Manitou, ABsistemDC(NG), WBB, Horus and SBN

OS Malevich operating system

Power supply: 110-240 V from the mains

Built-in backup battery: Li-Ion 3 ?-h

Up to 15 hours of battery life when Ethernet or Wi-Fi channels are disabled

Power consumption from the mains 10 W

Jeweler radio technology: Communication range with detectors: up to 2,000 m in open spaces - Two-way communication between devices - Operating frequencies - 868.0?868.6 MHz - Self-adjusting RF output power: up to 25 mW - Block encryption based on the algorithm AES - Detector polling period: 12?300 s - Frequency hopping

Wings radio technology Transmission of visual confirmations - Verification of packet reception

Operating temperatures From ?10°? to +40°?

Anti-tampering systems Prevention of counterfeiting - Jam notifications - Tamper to detect opening and disassembly from SmartBracket

Dimensions 163 × 163 × 36 mm

Weight 351 g.

Components in the package:

Ajax Hub 2 Plus control panel

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

SIM card (depends on location) User guide.
